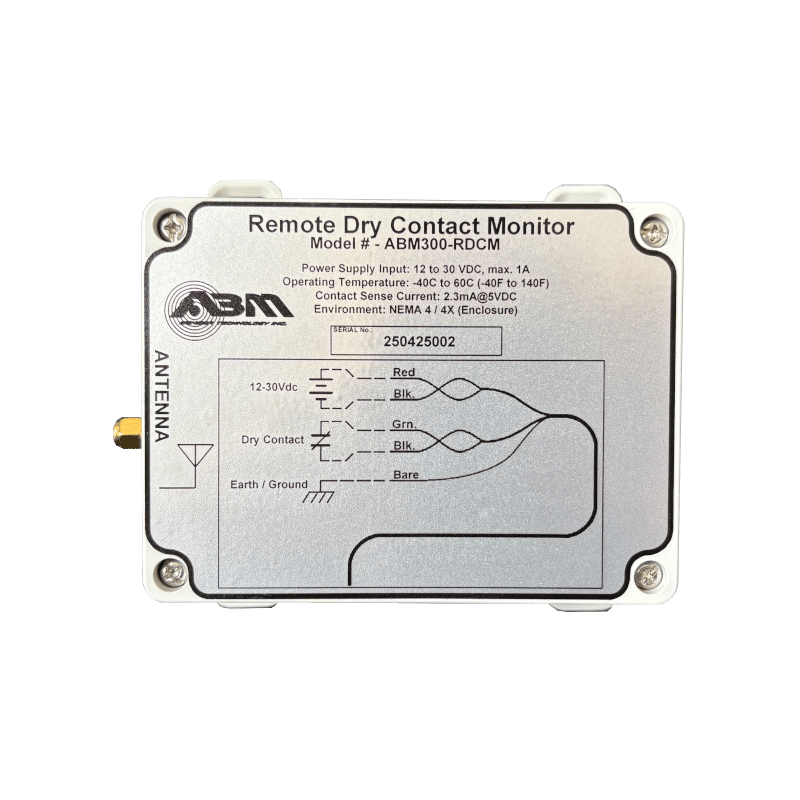

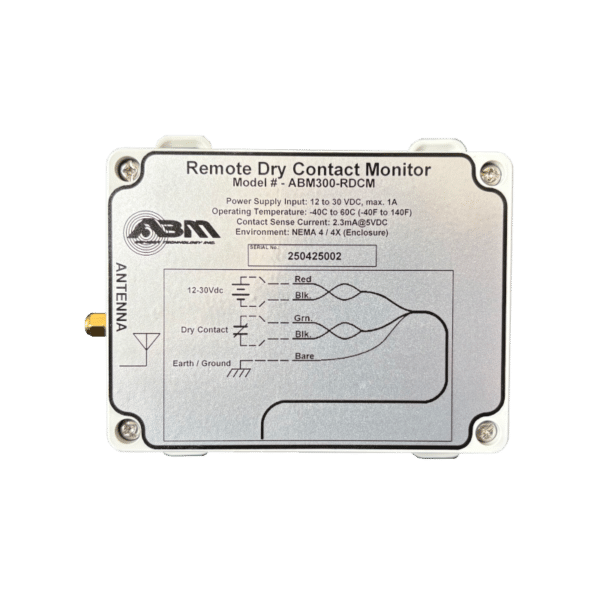

Remote Dry Contact Monitor

The Remote Dry Contact Monitor (RDCM) is designed to monitor a single dry relay or switch contact and reports its status to the ABM Sensor Access server. Users can login to the ABM Sensor Access server to configure their RDCM, view alarm history and setup emails to receive alarm messages.

  • Remote monitoring for single dry relay or switch contact
  • Wireless communication via cellular network
  • Web-based ABM Sensor Access portal for monitoring, configuration and alarm via email message setup
  • NEMA 4 / 4X enclosure, suitable for outdoor installation

Need help selecting a level sensor? Go to our Product Configurator Here >

The Remote Dry Contact Monitor (RDCM) is designed to monitor a single dry relay or switch contact and reports its status to the ABM Sensor Access server. Users can login to the ABM Sensor Access server to configure their RDCM, view alarm history and setup emails to receive alarm messages.

The RDCM provides a “heartbeat” measurement every 12 hours by default when no alarm conditions have been detected. If an alarm condition is detected and reported to the server, the heartbeat timer is reset. The purpose of the heartbeat measurement is to provide regular health status of the RDCM. The heartbeat timer can be configured from 1 hour to 12 hours through the Sensor Access Website https://sensor.abmsensor.com/login.php.

Communication: Wireless via cellular network
Input: Single dry relay or switch contact
Power: 6-30VDC
Configuration: Remote via web-based ABM Sensor Access portal
Ambient Temperature: -40°F to +140°F (-40°C to +60°C)
Protection Rating: NEMA 4 / 4X

Remote Dry Contact Monitor Installation Manual

Remote Dry Contact Monitor Troubleshooting Manual
